How a Shell Works

What is a Shell ?

The shell is a command-line interface, which means it is solely textual content-based totally. The user can kind instructions to perform features along with run packages, open and browse directories, and view methods which can be currently walking. Since the shell is most effective one layer above the working machine, you could perform operations that are not constantly feasible the usage of the graphical user interface (GUI). Some examples encompass transferring files inside the machine folder and deleting files which might be usually locked. The catch is, you need to realize the ideal syntax whilst typing the commands and you can nonetheless be caused for a password with the intention to carry out administrative capabilities.

Shell Example

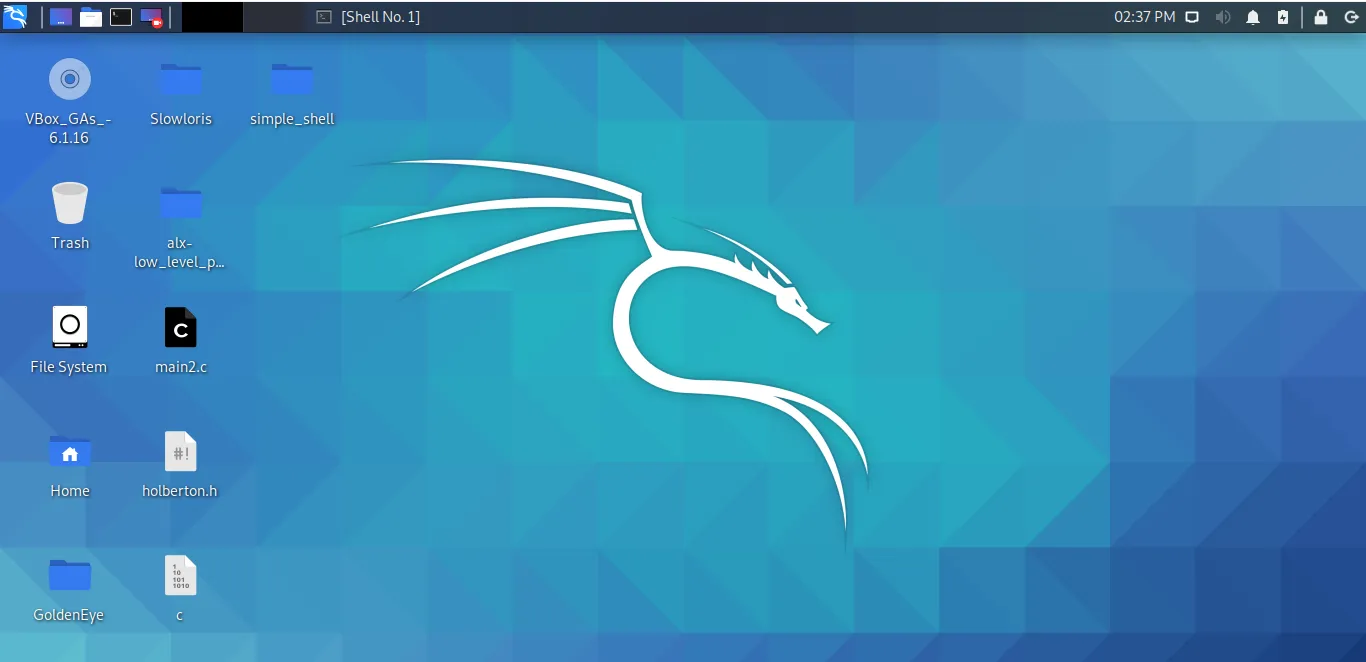

GLI (Graphical Line Interface) Example

Shell use what we call System Calls — A system call is a manner for programs to interact with the running machine. … It provides an interface between a system and operating system to permit user-degree strategies to request offerings of the working machine. System calls are the only entry factors into the kernel system.

How it all goes down?

1. Shell activates:

   Once you open a terminal on anything working device, you’re the usage of, you’ll activate the CLI.

2. Prompts a user:

   A activate is usually printed on the screen additionally understand as trendy output with a blinking cursor or dollar image example ($).

3. It reads what the person enters It uses the getline() function with a view to study the whole lot till you press enter and allocates memory to your device for what you type out. The getline() characteristic also listens for go out features e.g. CTRL C and the shell will without delay exit.

4. Tokenize your input:

   If you typed in something that doesn’t make sense the termination of the shell or the for a new command to be entered, the function strtok()is used to break your saved command into separate strings (tokens) .It is aware of separate tokens with the aid of the spaces (delimiter).

5. Alias Test

   The shell will first check to look if this primary token is the end result of one of your shortcut names. If it’s far, the shell will then replace the primary token with a string of tokens out of your alias.

6. Checks if built-in

   The shell will then check if the first token is a built-in application specific to the shell and not an executable. If it is a built-in, it’s going to execute that built-in, print the end result to your terminal, and pass all the way down to step eleven, repeating the procedure to re-prompt you for extra instructions.

7. Checks if executable in PATH

   If it turned into now not a built-in, the primary token is first matched to see if it exists. The directories that comprise all of the executable capabilities the shell can handle are in the PATH environmental variable. The PATH is further tokenism like your command so each directory is separated with the aid of their unique.

8. Creates child procedure

   The shell performs a system call usingfork()that creates a child method that works simultaneously along with the parent manner. Once the fork is created, the rest of this system is duplicated.

9. Execute or print mistakes message

   Once the shell detects it’s in the child procedure, a device name such as execve() will execute your command and print the result of the command onto the same old output. After the execution, the device call kills this system.

10. Parent finishes ready and wakes

    After the child manner completely terminates, the figure is done waiting and could start to carry out again. Since the shell has back an end result of your command to the standard output.

11. Reprompt and repeat

    After a end result of your command is outlined, the shell will re-prompt you ($) The shell continuously repeats steps 2–11, studying your typed in command till you hit enter and prints the end result of that command onto your terminal until you call it to exit.

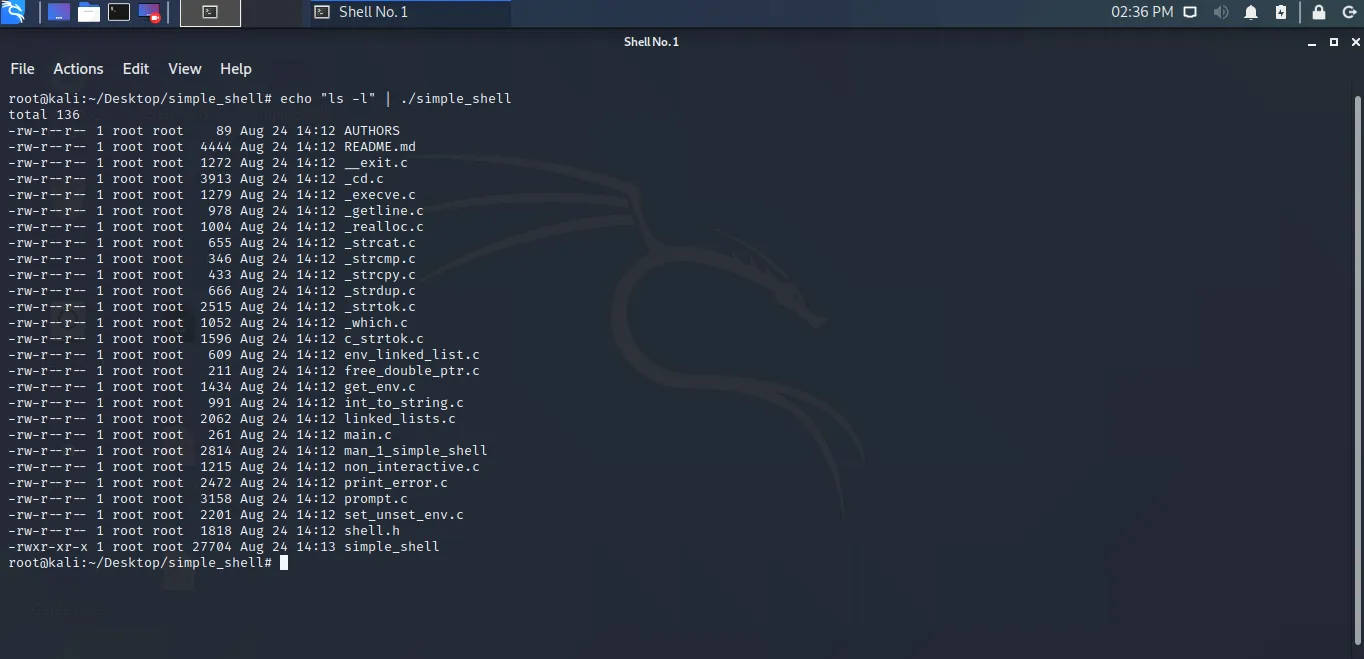

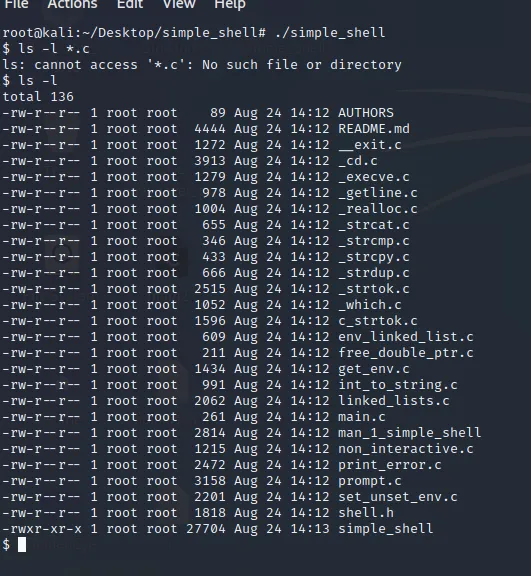

Following the stages above here is an example ls-l on our simple shell.

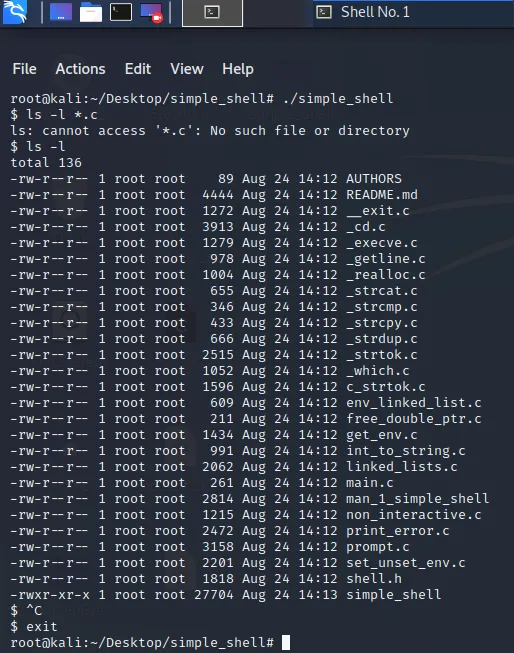

To Exit the Shell you can use the command exit or CTRL D to exit the shell.

Conclusion

The shell is a powerful tool that allows users to interact with the operating system at a low level. By understanding how the shell works, you can leverage its capabilities to perform a wide range of tasks efficiently. Whether you are a system administrator, developer, or casual user, the shell provides a flexible and efficient way to manage your system and execute commands. By mastering the shell, you can unlock the full potential of your operating system and streamline your workflow.

If you found this article insightful, feel free to share it with others who might benefit from it. For more content on shell scripting, system administration, and programming, stay tuned for future updates. Thank you for reading!
